Overview of Medical Devices
Exported via TerraMed
ESWL from HnT Medical
The Rifle Extracorporeal Shock Wave Lithotripter (ESWL) is a non-invasive device for treating kidney and urinary tract stones using high-energy sound waves. Key features include an electromagnetic shockwave generator, high-frequency X-ray system, and high-resolution digital camera. It offers precise targeting with integrated distance measurement and a user-friendly design. Specifications include a focal depth of 160mm, energy density of 1.09mJ/mm², and various movement ranges for the treatment table and C-arm. The system includes essential components like a treatment table, water system, and remote control.
Extracorporeal Shock Wave Lithotripsy

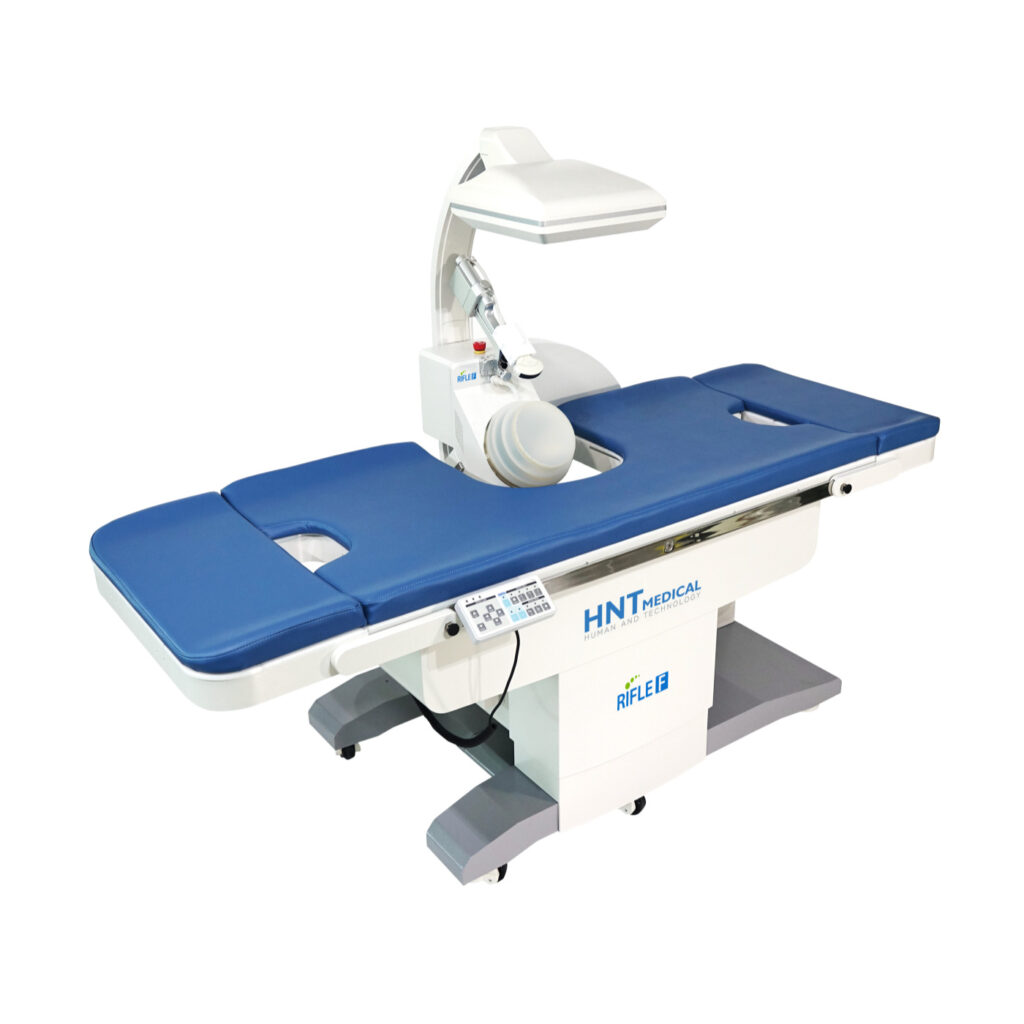

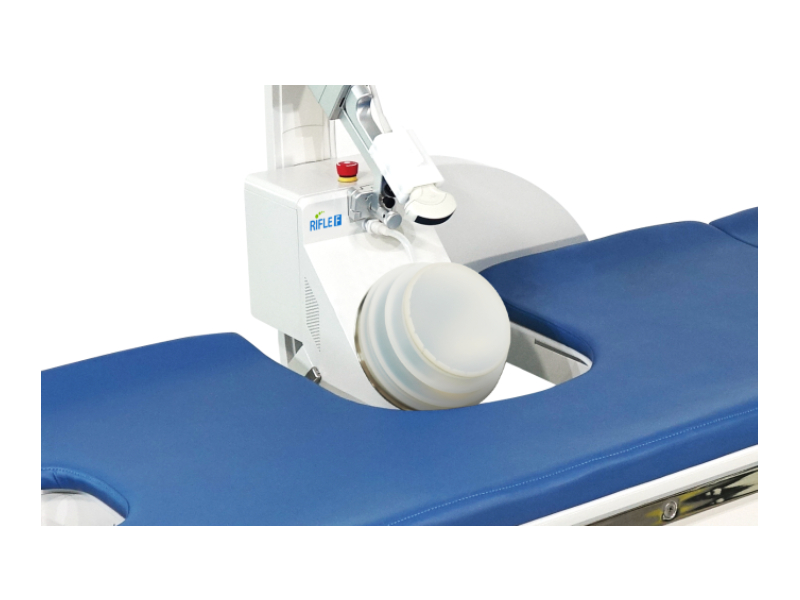

RIFLE-F

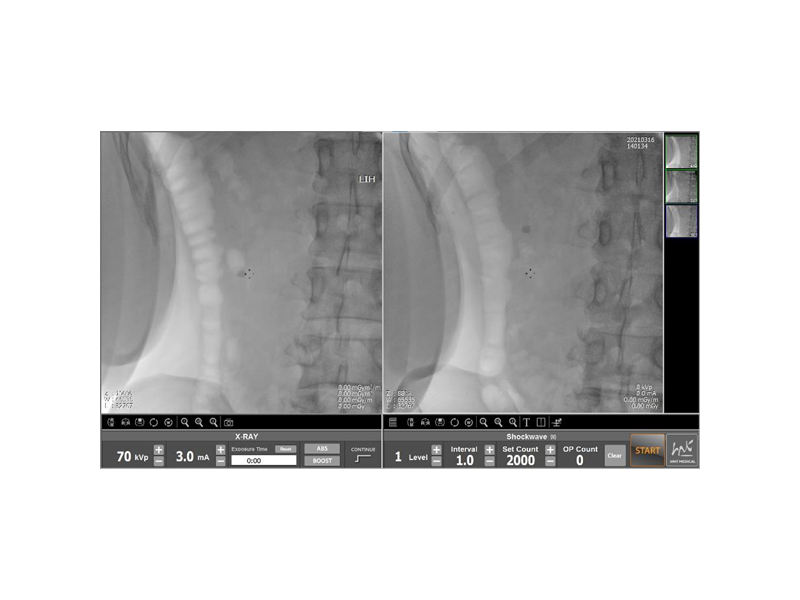

By adopting a Flat Panel Detector without image distortion, urinary stones are accurately diagnosed in real time and treated by pulverizing them with extracorporeal shock waves so that they can be expelled naturally.
| Type | EM (electro magnetic) |
| X-Ray type | Rotating Monoblock X-Ray Tube |
| Dimensions | 2,000 x 895 x 1,558 (width x length x height) |
| Weight | Approximately 268kg |
Flat Panel Detector
High-performance FPD imaging system : 12” x 12” size
High-frequency modulation allows precise adjustment of the X-ray tube
Boost Mode, Low Dose Mode
EM (Electro magnetic) Type
HNT Medical’s patented technology
Stable shock wave generation
Less noise and pain

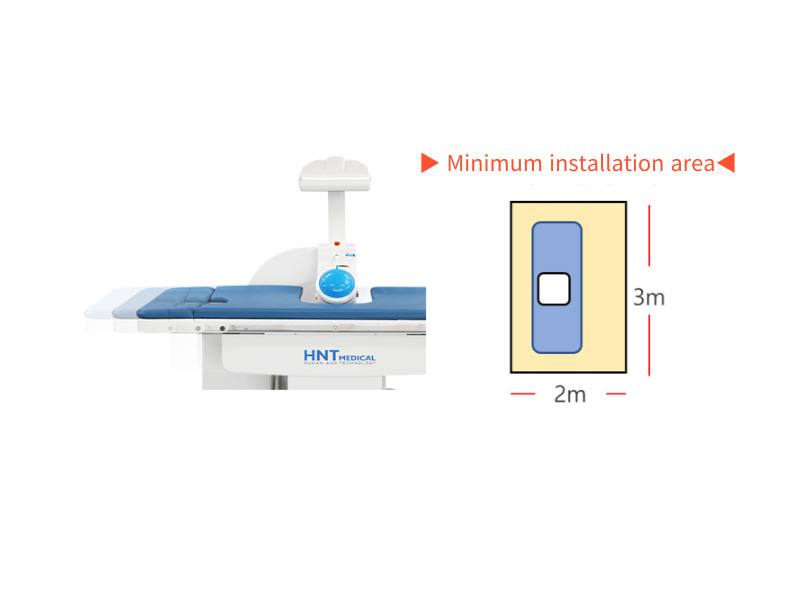

Compact all-in-one design
Minimize installation area by minimizing equipment size
Body Composition Analyzers from Mediana
The Mediana Body Composition Analyzer is a state-of-the-art device designed for professional use, employing bioelectrical impedance analysis (BIA) to estimate body composition parameters such as fat mass, muscle mass, and segmental impedance. Featuring an advanced 8-point tactile electrode system, it ensures high reproducibility and reliability. The device calculates results based on weight, impedance, and frequency, providing valuable insights for health care professionals in management settings. It is not intended for diagnosing, managing, or treating medical conditions.

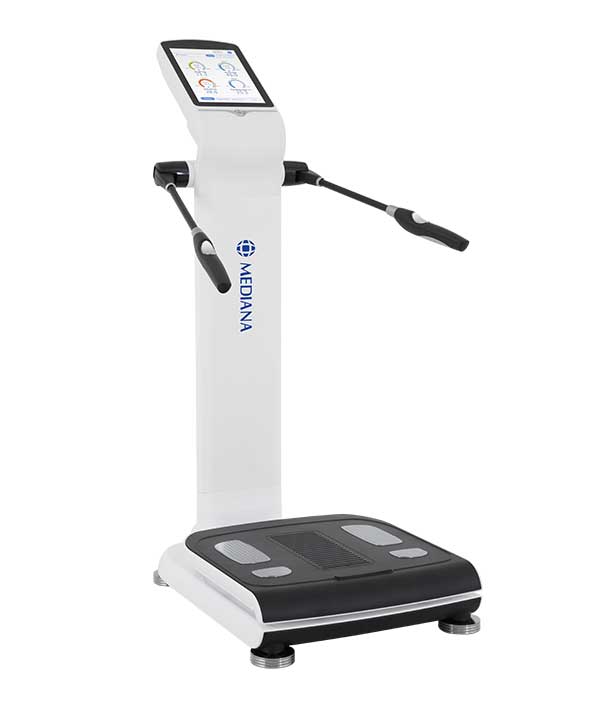

Advanced Body Composition Analyzer /
Premium Body Composition Analyzer
i50 / i55
Measurement Frequencies (kHz)
– i50 : 1, 5, 50, 100, 250, 500
– i55 : 1, 5, 50, 250, 500, 1000
Power Specifications: Input – AC 100~240V, 50~60Hz, 1.5A / Output – DC 12V, 5A
Input Interface: Full Touch
External Interfaces: RS232 (9-pin serial cable) 1EA, USB Host 4EA, Mini-USB 1EA, LAN 1EA
Display: 10.4 inch (768 x 1024), Full Touch Screen
Dimensions: 472mm(W) x 888mm(D) x 1167mm (H)
Weight: Approx 24 kg
Measurement Time: Approx 60 secs
Designed for fitness and healthcare professionals
Optimized Body Composition Analyzer

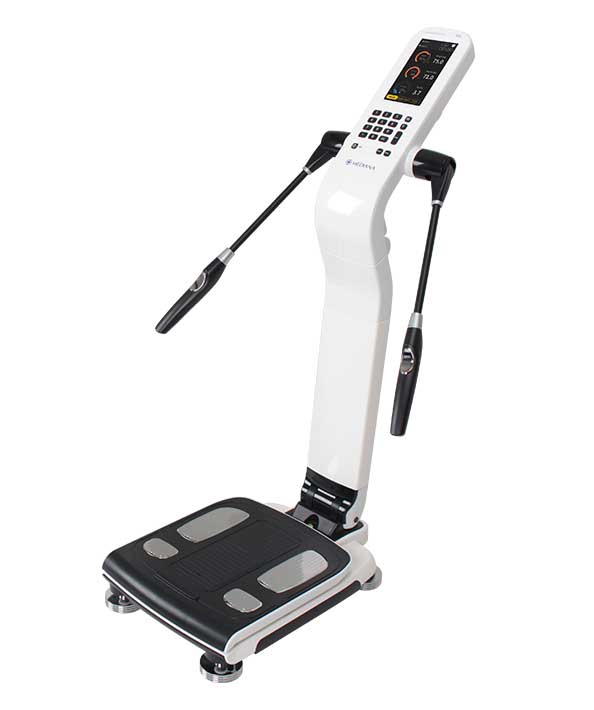

i30 / i35
Measurement Frequencies (kHz)
– i30 : 5, 50, 100
– i35 : 5, 50, 100, 250
Power Specifications: Input – AC 100~240V, 50~60Hz, 1.5A / Output – DC 12V, 5A
Input Interface: Key pad, Touch screen
External Interfaces: RS232 (9-pin serial cable) 1EA, USB Host 2EA, Mini-USB 1EA, LAN 1EA
Display: 7 inch (600 x 1024), Color Touch LCD
Dimensions: 360mm(W) x 559mm(D) x 1077mm (H)
Weight: Approx 17.5 kg
Measurement Time: Approx 30 secs
Well-balanced life through essential features
Smart choice for managing obesity and a healthy lifestyle

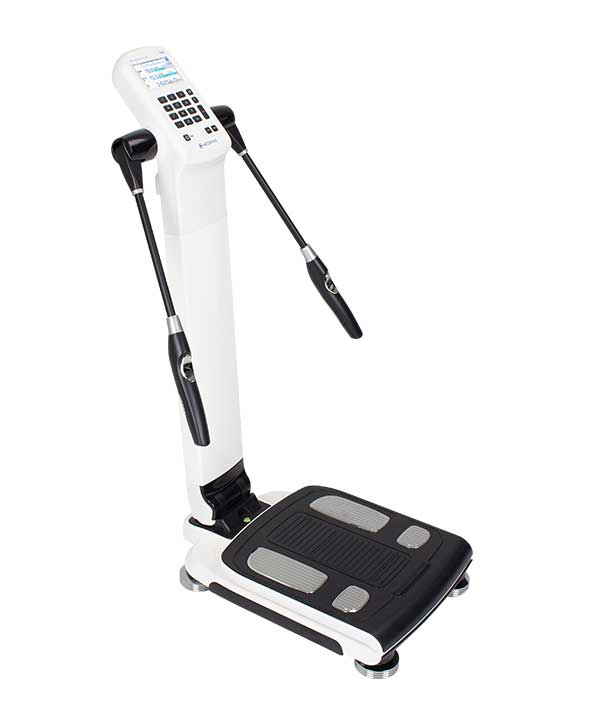

i20 / i25
Measurement Frequencies (kHz)
– i20 : 10, 100
– i25 : 10, 50, 100
Power Specifications: Input – AC 100~240V, 50~60Hz, 1.5A / Output – DC 12V, 5A
Input Interface: Key pad, Touch screen
External Interfaces: RS232 (9-pin serial cable) 1EA, USB Host 2EA, Mini-USB 1EA
Display: 4.3 inch (480 x 272), Color Touch LCD
Dimensions: 360mm(W) x 559mm(D) x 992mm (H)
Weight: Approx 17 kg
Measurement Time: Approx 25 secs
Wireless Ultrasound from Healcerion
The Healcerion SONON series represents the world’s first mobile-based, wire-free ultrasound device, designed to deliver high-quality imaging with unmatched portability. Using advanced technology, SONON enables quick and efficient patient care directly at the location, revolutionizing medical imaging traditionally constrained by the past 70 years. This innovative device provides flexible, on-the-go diagnostics, transforming how ultrasound is used for faster and more effective healing. Note that SONON is intended for diagnostic imaging purposes and is not a substitute for comprehensive medical treatment.

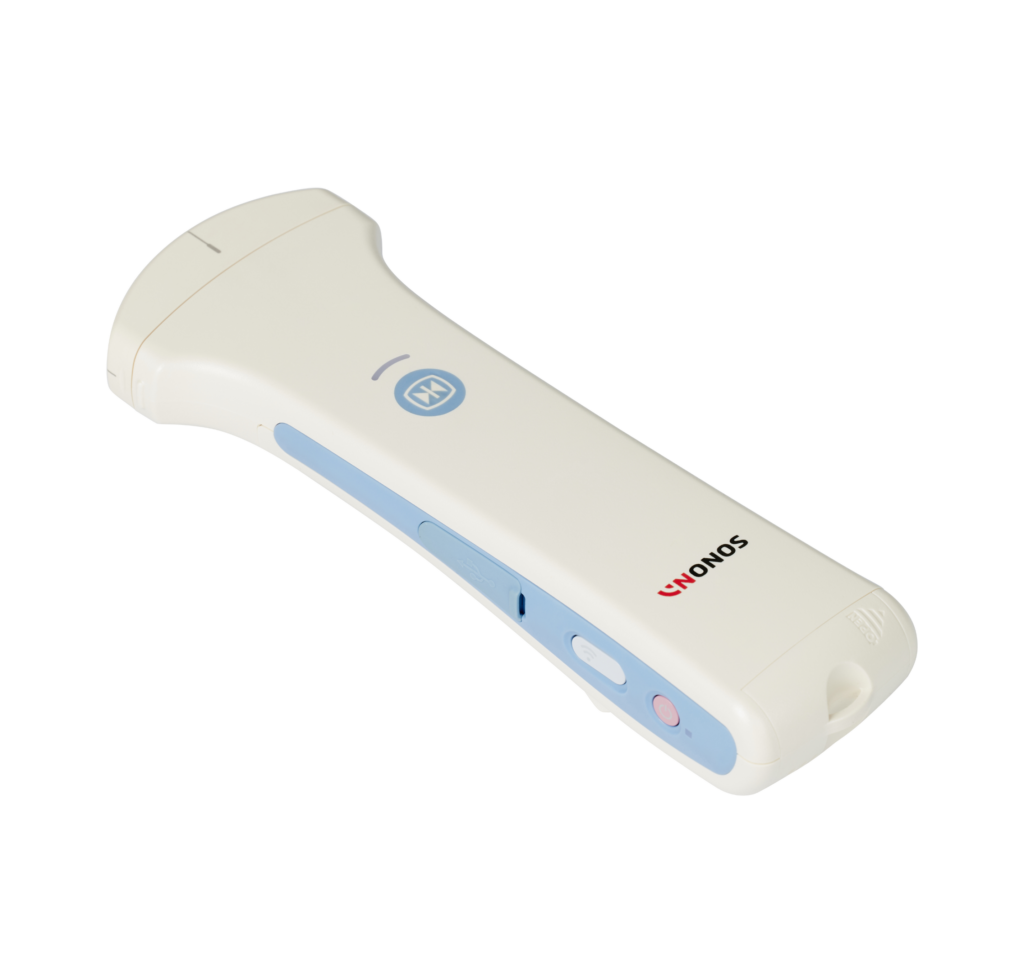

This is Healcerion’s first model, SONON 300C.
This model type is optimized for abdominal and gynecological diagnoses.
- FDA Approved
- CE Approved
SONON 300C
- Frequency: 3.5MHz
- Max Depth: 4cm~24cm
- Application: Obstetrics(OB), gynecology(GY), Abdominal
- Weight: 390g(including Battery)
- Using Time: 3 hours(Scan) 12 hours(Stand-by)
- Recharging Time: 3 hours(Full)
- Operating Mode: B, CF, PW, M

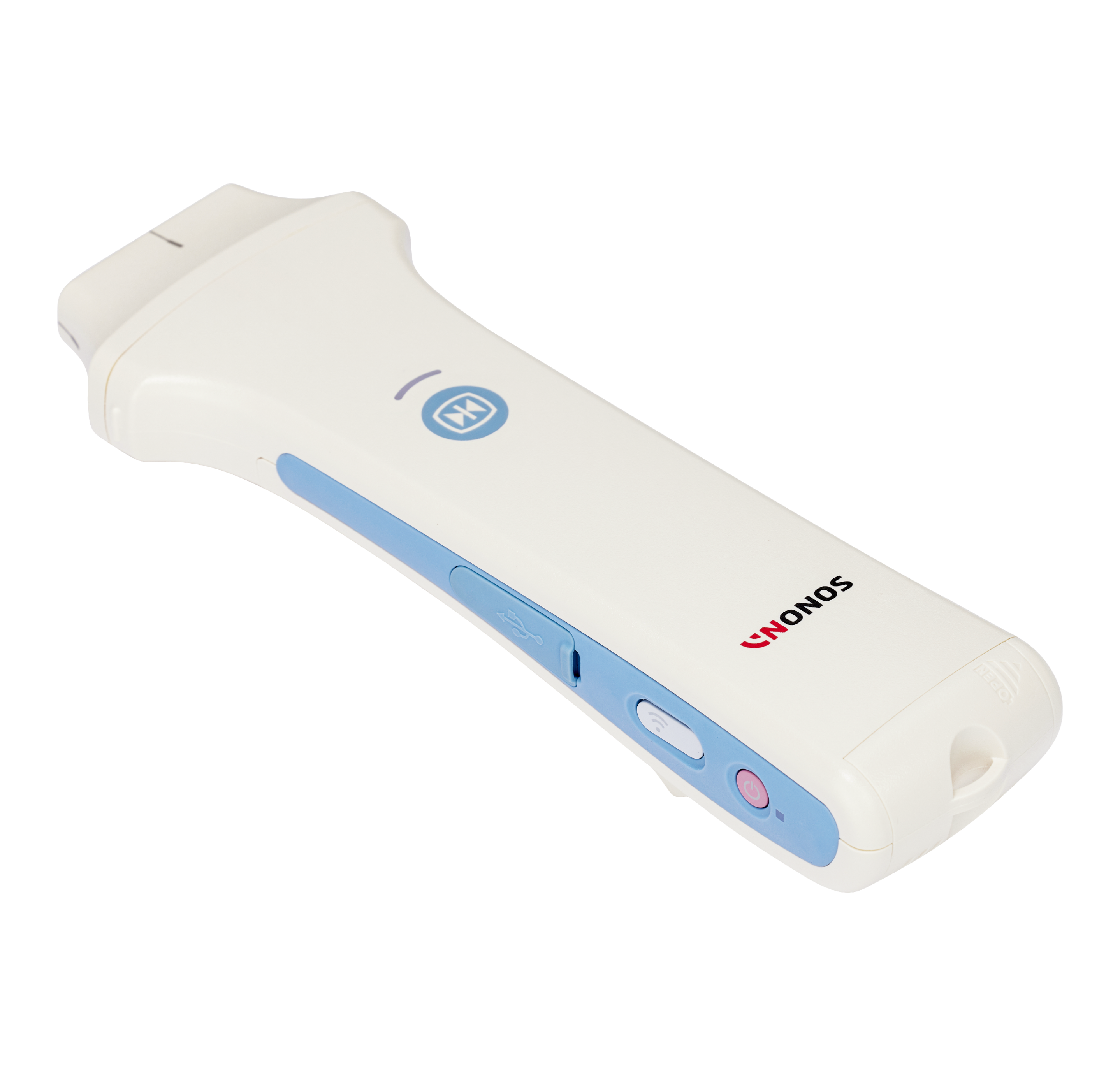

This is Healcerion’s second model, SONON 300L. This model type is optimized for superficial organs such as thyroid, breast, and musculoskeletal system.
- Compact Design
- Wireless Connectivity
- Compatible with PACS
- Long Battery Endurance
300L
- Frequency: 5 / 7.5 / 10MHz
- Max Depth: 3cm~10cm
- Applications : musculoskeletal(MSK), Vascular, Small Parts(Breast, Thyroid), Thoracic/Pleural motion and Fluid detection
- Weight: 370g(including Battery)
- Using Time: 3 hours(Scan) 12 hours(Stand-by)
- Recharging Time: 3 hours(Full)
- Operating Mode: B, CF, PW, M

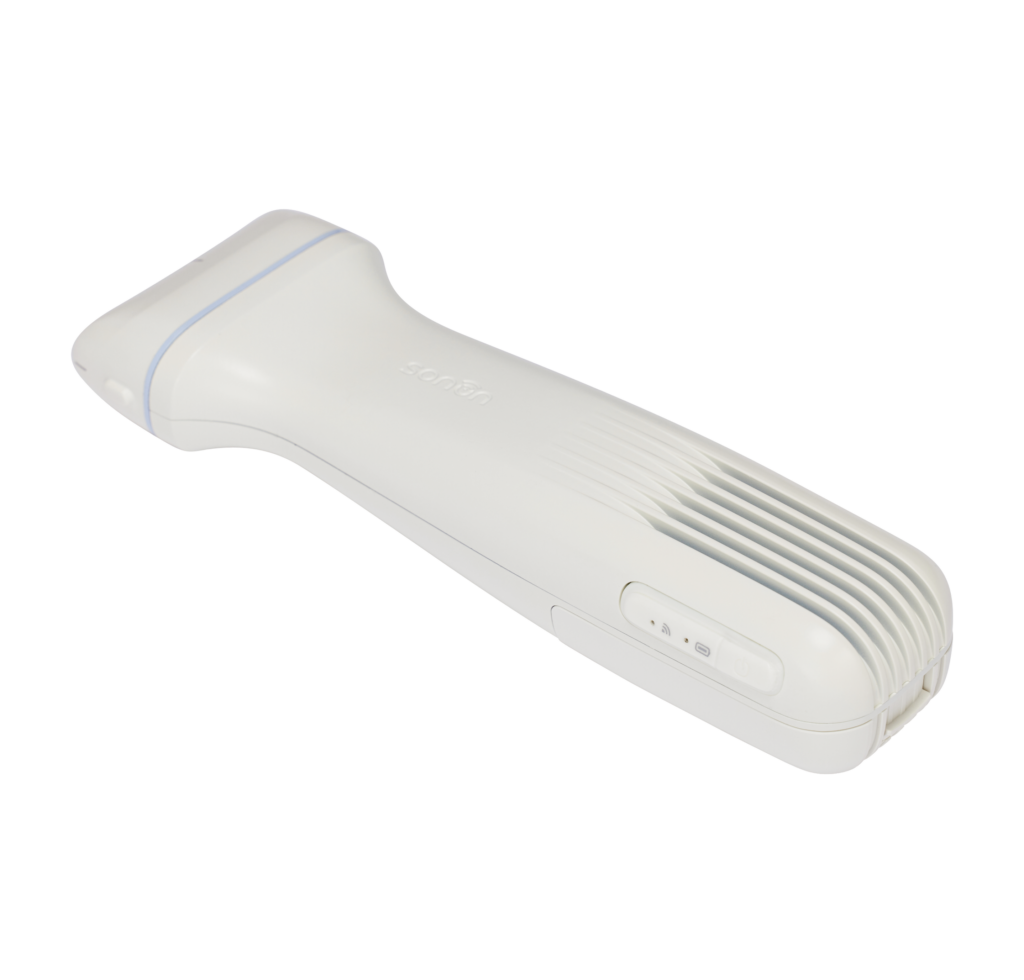

Compared to the existing 300 series, the SONON 500L model has been reduced by 41% in size and 30% in weight and applies VSETM technology for a three-fold improvement in image quality.
- FDA Approved
- CE Approved
- Best option for
MSK visualisation
SONON 500L
- Frequency: 4~13MHz
- Max Depth: ~6cm
- Applications: musculoskeletal(MSK), Vascular, Small Parts(Breast, Thyroid)
- Weight: 260g
- Using Time: 1 hour 30min(Scan), 12 hours(Stand-by)
- Recharging Time: 1 hour 30 min(Full)
- Operating Mode: B, CF, PW, M
PACS Solutions from Healthhub
The HealthHub platform utilizes AI, cloud, and mobile technologies to develop advanced smart hospital systems. Its HPACS solution offers a cloud-based medical image and data management system, utilizing WebGL and HTML5 for efficient processing of large images. Key features include comprehensive medical data management, reliable performance during malfunctions, and robust security with high-level backup. HPACS supports interoperability across systems and versions, provides scalable solutions, and facilitates automation-driven self-service. Additionally, real-time image sharing and AI integration enhance treatment efficiency and foster physician collaboration.
Global Healthcare SaaS Platform

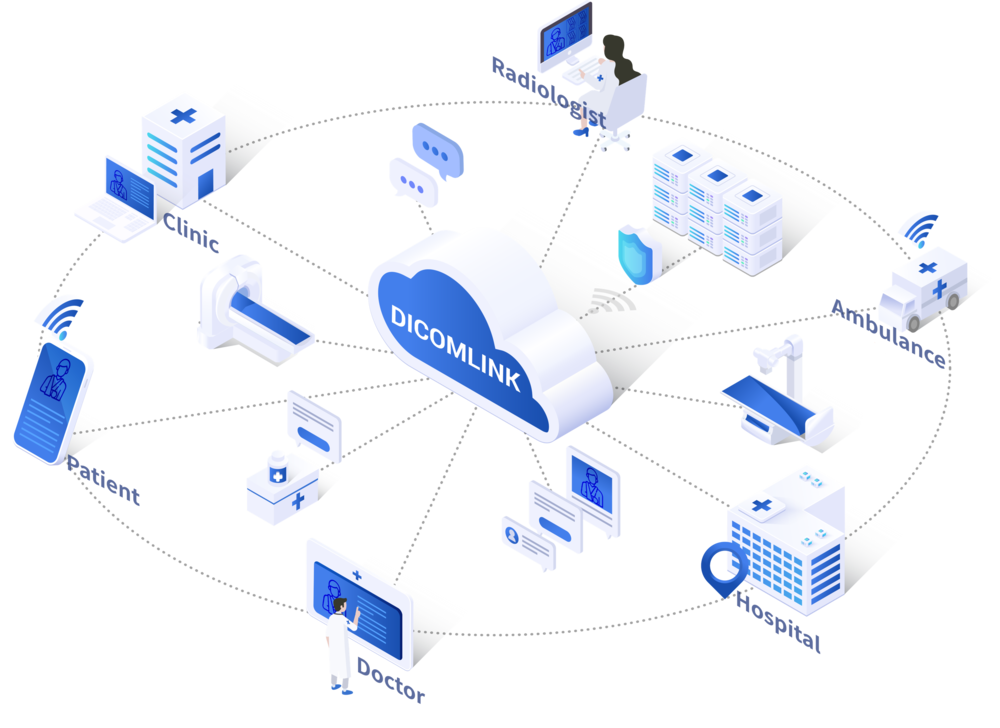

DICOMLINK is a medical information operation cloud platform provided as SaaS. We provide fast and seamless medical data services tailored to your goals.
Healthhub developed DICOMLINK for the purpose of cooperative exchange of medical image information for the HIE (Hospital Information Exchange) system that connects patients (individuals), medical institutions, and medical staff based on the cloud from the early stage of development. Currently, we are providing cloud-based SaaS services with improved interoperability, flexibility, and agility to exchange medical information in connection with various medical information systems.
DEXA from Medikors
The InAlyzer DEXA by Medikors is the world’s first 108μm DXA bone mineral density and body composition analyzer for research, recognized for its advanced technology both nationally and internationally, including by renowned research institutes and university hospitals. Using the TRUE fan-beam technique and a 64-channel linear array detector, it delivers super-resolution imaging in under 30 seconds. The Raw mode imaging of the InAlyzer enhances ROI establishment convenience and significantly improves the accuracy and reproducibility of bone mineral density diagnostic results. Additionally, the InAlyzer AIR, a 64-channel device providing exclusive DR imaging in the country, offers excellent resolution and rapid scanning speeds, pioneering new markets. MEDIKORS Inc., committed to advancing human health and evolving into a total healthcare manufacturer, is dedicated to making a positive contribution to human life through its innovative technologies.

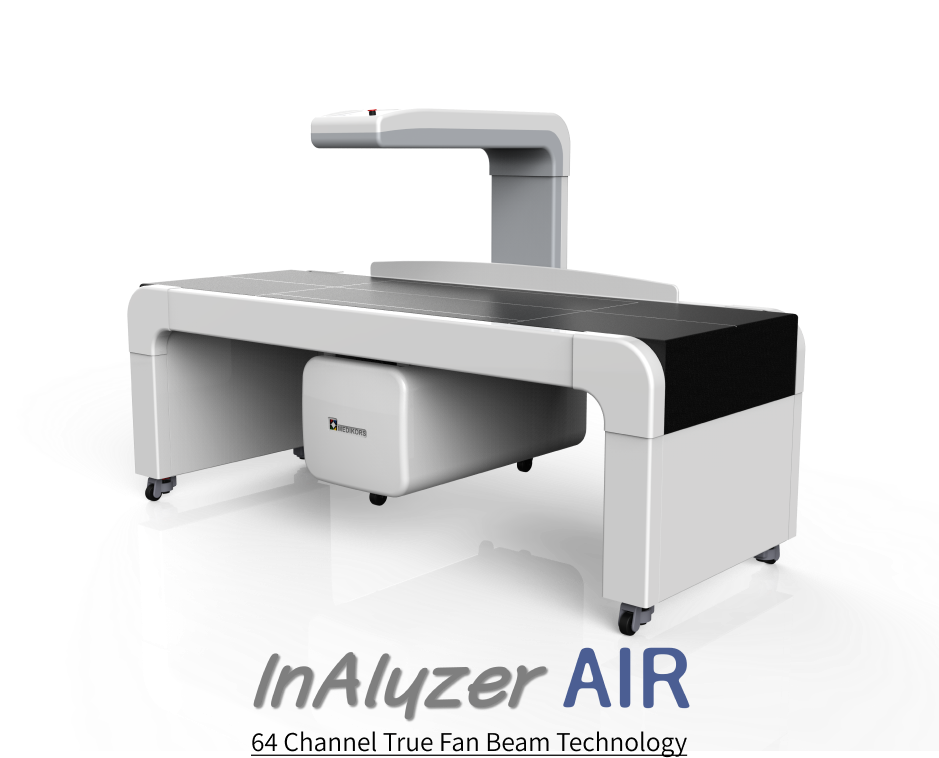

64 Channer True Fan Beam Technology

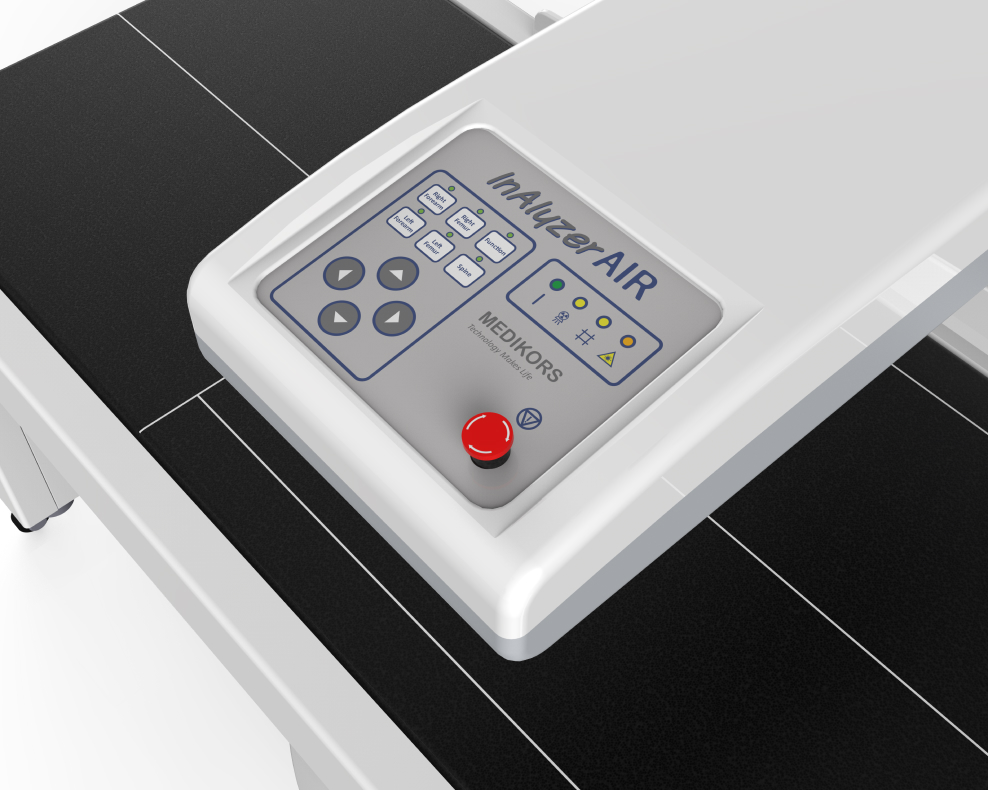

InAlyzer AIR
It realizes quick measurement with super-resolution images within 30 seconds through TRUE fan-beam technique using a 64-channel linear array detector. Raw mode images provided in this way not only increase the convenience of ROI establishment but also greatly help induce accurate diagnostic results.

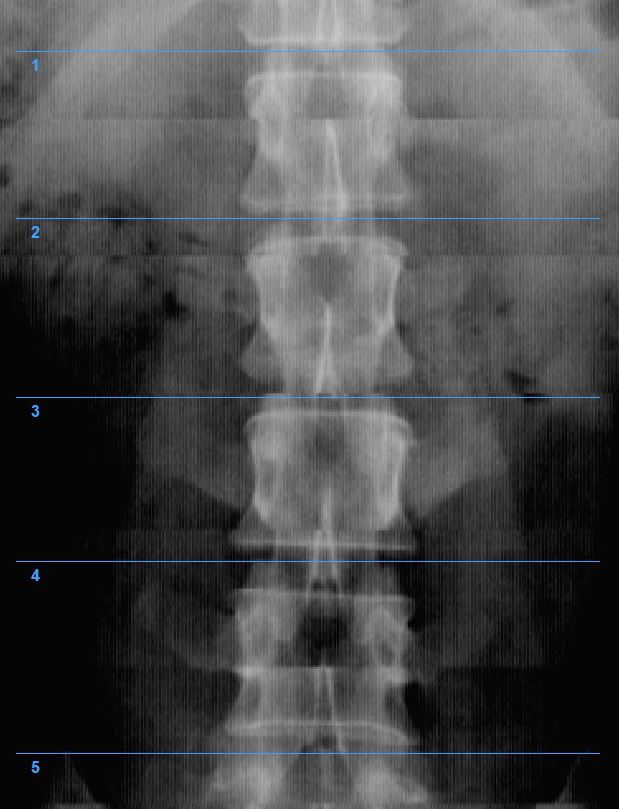

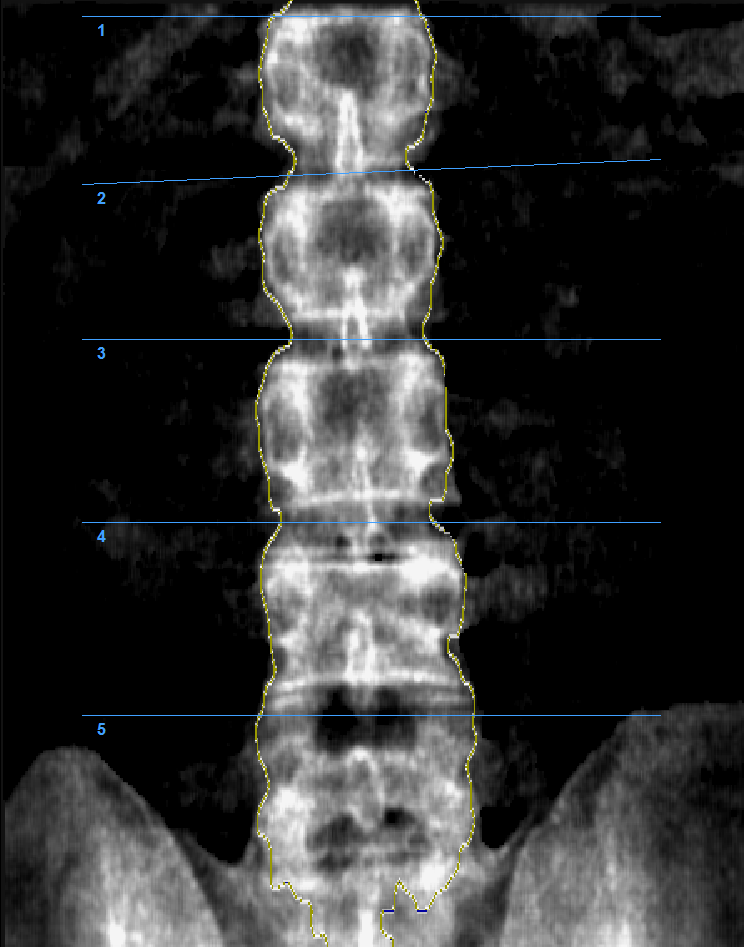

Raw image
It improves the accuracy and the reproducibility of diagnostic results for bone mineral density by providing Raw mode imaging.

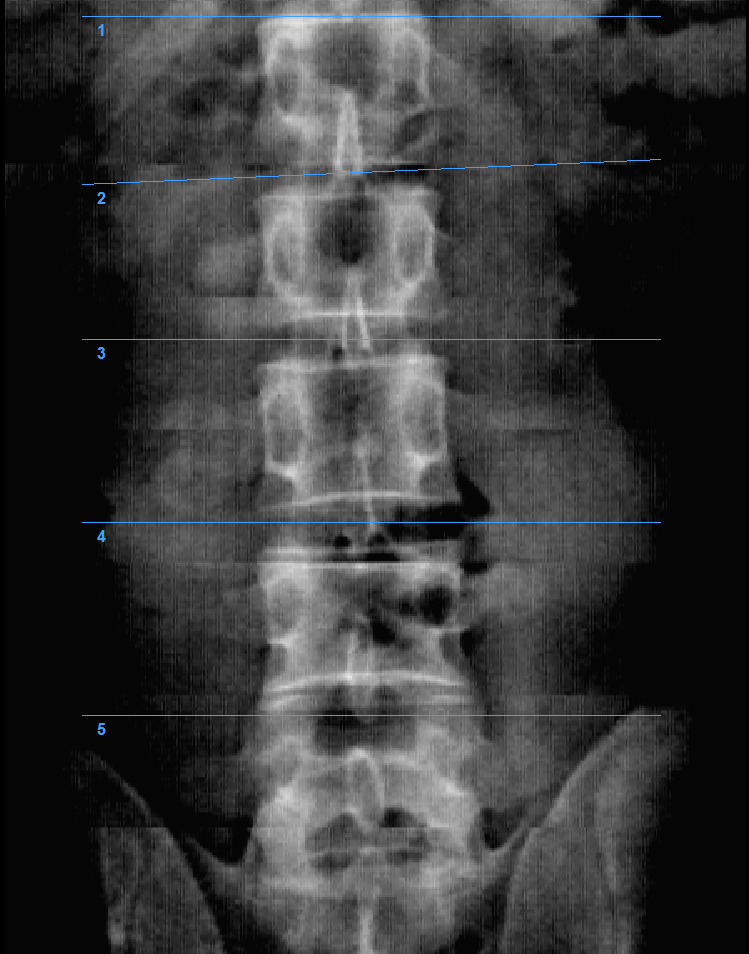

[Raw Image]

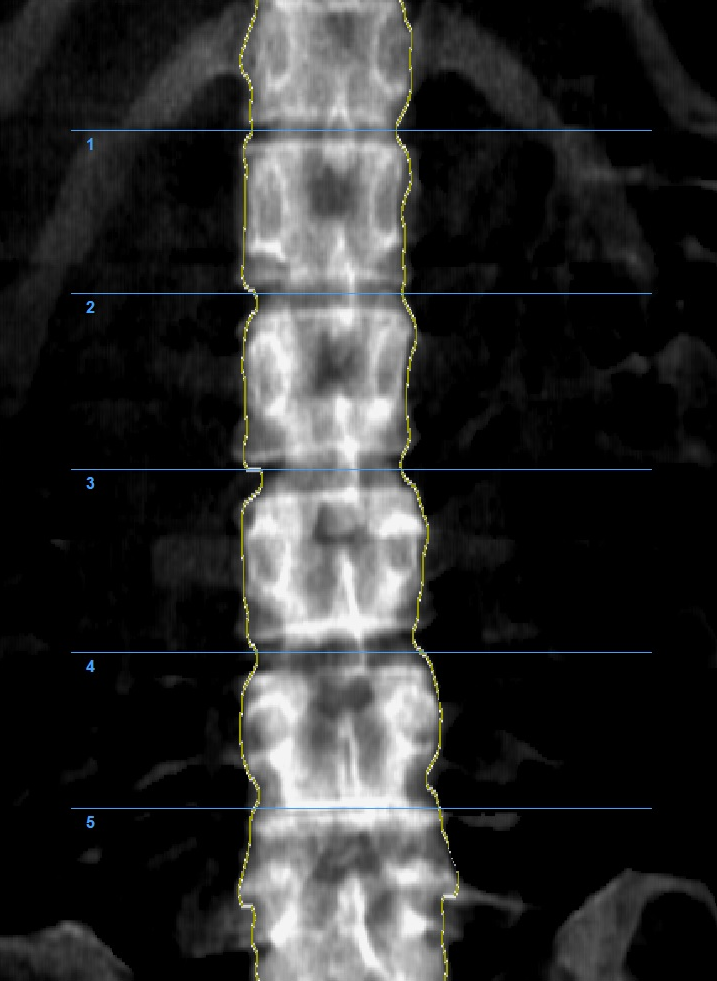

[BMD Image]
64-channel
It is a 64-channel true fan-beam bone mineral density measurement device using a 64-channel detector and fan-beam DXA technology. By obtaining 64 data per X-ray irradiation, it successfully executes a fast scanning time of 30 seconds. It also provides authentic super-resolution images through MEDIKORS’s advanced image processing technology.

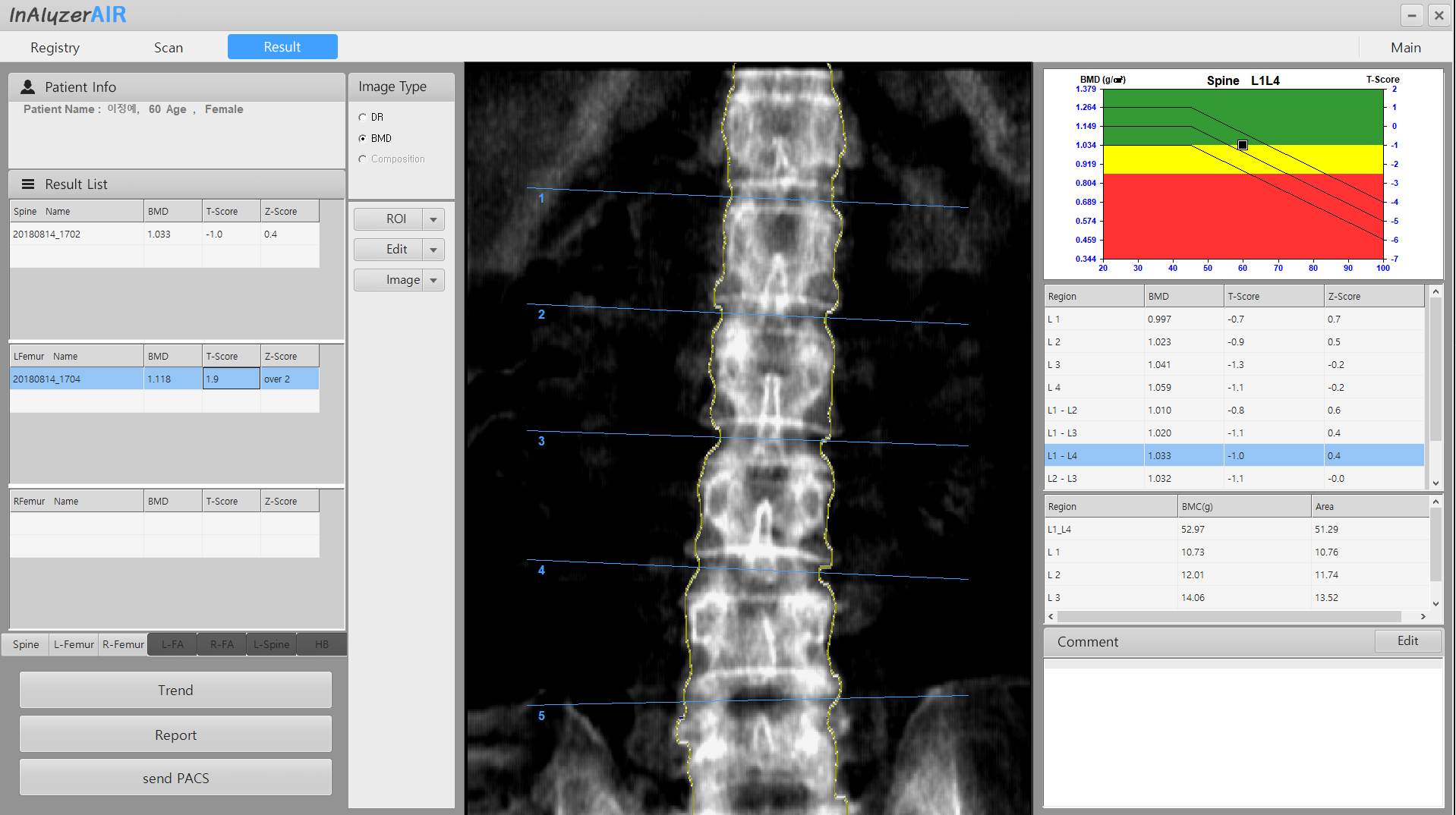

Powerful software
It not only provides various diagnostic tools but also makes convenient and accurate measurements possible through intuitive software. In addition, it maintains the performance quality for highly reliable results through maintenance and repair.

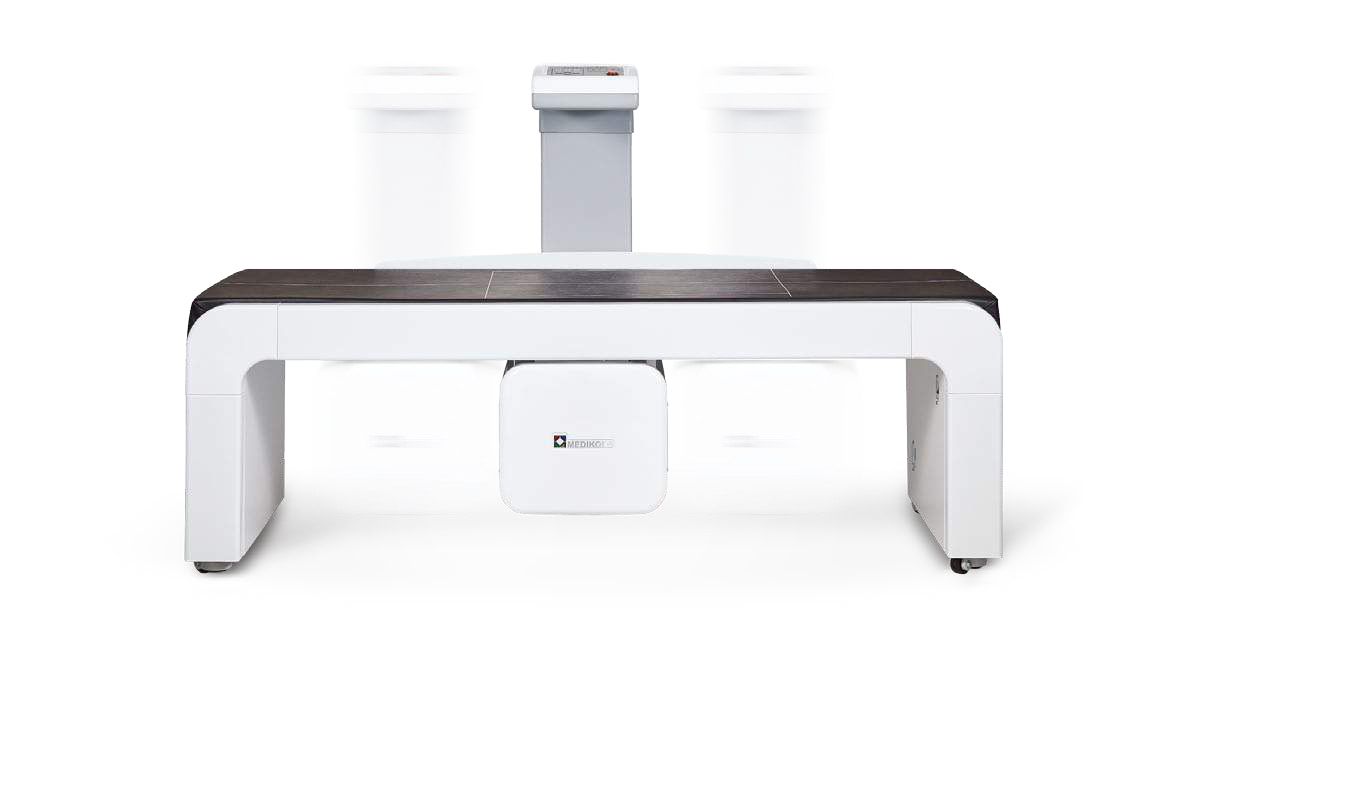

Excellent & Robust design
With its excellent design known for being first-in-the-world open-type design (design patent), the external structure was minimized (1850 x 800mm) and the scanning area was maximized (490 x 900mm) to improve space efficiency for convenient installation and use even in a narrow space.
Spine BMD Video
Spine Raw Video
Electroencephalography-Based Sleep Diagnosis Solution from Slowave.
The Slowave EEG device is the world’s smallest and most accurate brainwave-based sleeplessness diagnostic tool. As a second-class medical device, it allows for convenient at-home sleep condition monitoring under your doctor’s guidance. Utilizing advanced phase algorithms, it provides stable and sophisticated EEG measurements by leveraging phase relationships within the network, surpassing traditional power spectrum-based methods. The device features minimalized circuitry and low-power techniques, employing ultra-small chips and a low-power measurement algorithm to ensure ultra-small size and energy efficiency. Additionally, it incorporates noise reduction through digital filter technology, extracting EOG (Electrooculography) with existing channels and reference electrodes for enhanced REM condition diagnosis.
SLEEP MATTERS
Sleep is a very important physical activity that controls your ability to live during the day.
Lack of sleep is a factor that causes various diseases such as depression, dementia, high blood pressure, and diabetes, and the number of insomnia patients is increasing sharply every year.
The Promising Technology of SLOWAVE
Electroencephalography-Based Sleep Diagnosis Solution
Phase Algorithms
Unlike other sleep analysis algorithms based on power spectrum, algorithms based on the phase and relationship on the network enable very stable and sophisticated EEG measurements.
Minimalized Circuit & Low Power Techniques
It is implemented as an ultra-small and low-power product by applying ultra-small chips and low-power measurement algorithm.
EOG Feature Extraction & Noise Reduction
Combining digital filter technology for excellent noise cancellation and extracting EOG (Electrooculography) with existing channels and reference electrodes for more sophisticated REM – condition diagnosis.
